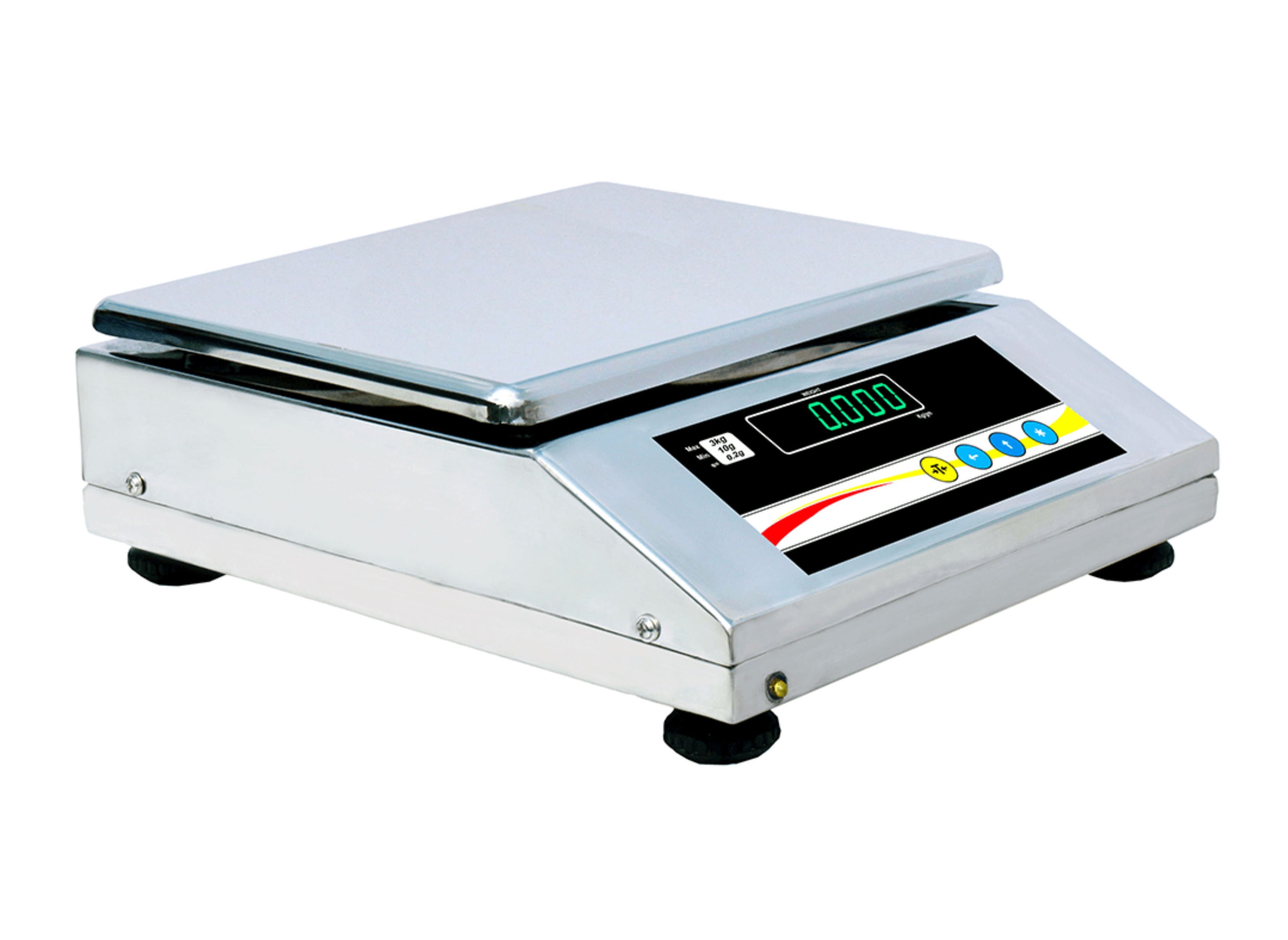

Table Top Scale Small

We will provide you with fast, accurate and friendly sales transactions for our customers

 Key features

  • Bright Green LED 14.22mm for easy viewing in most environments Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Sealed keypad protects against dirt and spills
  • Large, grade stainless housing and steel pan allows easy cleaning
  • Lightweight design simplifies transport and portability
  • Rechargeable battery 6V/4.5Ah for 24 continuous use
  • Rechargeable battery included for operation almost anywhere
  • Zero-tracking feature ensures display returns to zero reading
  • Auto power-off to save energy
  • Overload protection helps prevent damage to internal components Digital filtering helps minimise effects of vibration and disturbances External calibration allows for verification and adjustment with weights.
  • Solid Mild Steel housing is durable for industrial use
  • Simple operation allows quick startup and use with little or no training



Power Supply 190-270V AC, 50Hz
Power Consumption 5W
Operating Temperature / Humidity 0 C - 45 C / 85%RH Max. (Non-Condensing)
Physical dimension 329(L) x 296(D) x 105(H) mm.
Net Weight 5.20 kg. (approx)
Display Type 7 Segment LED Display
Display Digit 6 Digits.
Display Size 0.56" [14.22mm.]
Number of Keys 4 Keys
Battery and Charger In Built charger with Rechargeable battery
  • Pole Display (Instead of in-built dual display)
  • Two Colour Tower Lamp (Red and Green Colour)
  • Unit conversion: Kg to Liter
  • Check Weighing
  • Two Relay output for PLC
  • RS-232 Serial interface



  • 0-12V DC or 0-24V DC.
  • 0-10V DC or 0-5V DC.



Sr. No. Capacity Min Accuracy Platter Size (mm) Platter & Cabinet
W D
1 1.5kg 5kg 0.1g 302 (L) 227 (W) SS # 304
2 3kg 10kg 0.2g 302 (L) 227 (W) SS # 304
3 6kg 25g 0.5g 302 (L) 227 (W) SS # 304
4 15kg 50g 1g 302 (L) 227 (W) SS # 304
5 30kg 100g 2g 302 (L) 227 (W) SS # 304
  • Two colour Tower Lamp is optional
  • Two & Three Relay output
  • Range Low / Hi / Ok
