Platform Weighing Scales

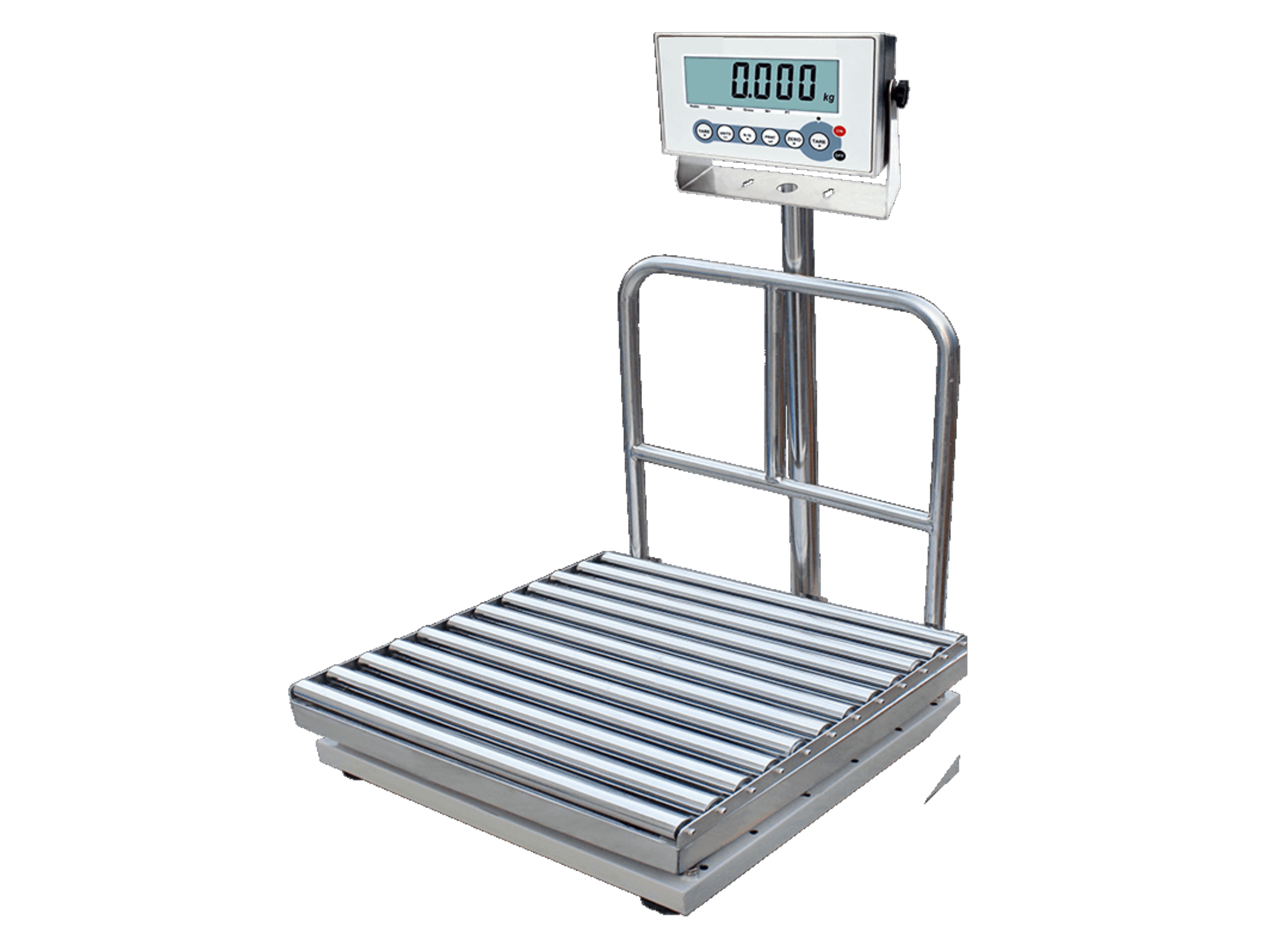

Platform Weighing Scale with SS Roller Platform

low profile and portable platform scales with stainless steel roller for applications where required. The platform’s ultra-low profile simplifies the job of moving loads onto and off the scale quickly, safely, and easily. Optional ramps are available to eliminate the need for lifting loads onto the platform. We have done deep research on the usage of the machine and have designed it in a manner which is very user friendly. The machine is easily portable and can be used easily for the industrial usages.



  • For easy movement of material
  • Smooth dust resistant roller and ramps
  • Roller MOC: MS or SS
  • Auto zero tracking
  • High Accurate Load Cell Based Scale
  • S.S./M.S. sturdy grill
  • Rugged Square Pipe 25x50mm Structure
  • ABS Body Indicator on adjustable separate/Attached pole
  • S.S./M.S. Checkered Platform
  • Auto calibration
  • Auto power saving function
  • User friendly operation
  • 6 Digit Red Led Display (14mm Height)
  • Kg. /Letter. Conversion Facility
  • Piece Counting
  • Inbuilt battery backup
  • 6V 4AH Rechargeable Battery
  • Dual/triple accuracy.
  • Corner Overload Protection
  • Roller Platform Scale



Platform Size 500 x 500mm 600 x 600mm 750 x 750mm
No. of Rollers 10 12 15
Pitch (mm) 50 50 50
Outer Dia (mm) 32 32 32
Inner Dia (mm) 27 27 27
Bearing SKF 6001 SKF 6001 SKF 6001
Side Engle L-type 32x3mm 32x3mm 32x3mm
Capacity (kg.) Accuracy (g) Platform Size (mm) Framework Platter/Pole/Back grill
100/200/300 10/20/50 500 x 500 MS Stainless Steel
100/200/300/500 10/20/50/50 600 x 600 MS Stainless Steel
300/500 50 750 x 750 MS Stainless Steel
