OCS-SL

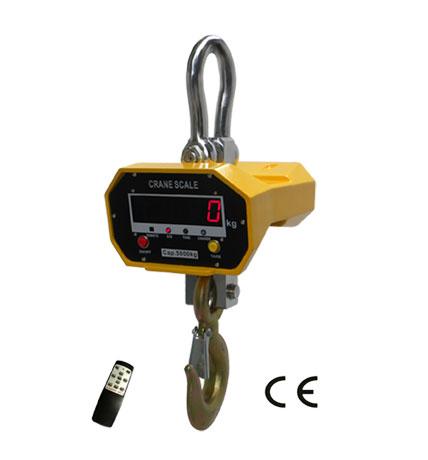

Unibody crane scale

?Multi-weighing units: Kg, lb, N are selectable, generally kg is the default unit.
?Multi-function operation: Tare?Zero?Auto zero tracking?Total?Hold; Overload warning and record, operate through remote controller ,etc functions.
?User-friendly design: Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥50 hours
Battery Type Fully sealed Lead-Acid battery, 6V/4.5Ah
Adapter DC9V/1000mA
Operating Humidity ≤85% RH under 20℃
Remote Controller Distance Min. 15m
Standard According to OIML class III
Display 30mm (1.2’’) 5digits LCD/LED
Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤10seconds
Overload Indication
MODEL A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) N.W.(kg)
OCS-SL-2 95 260 33 195 135 430 10.5
OCS-SL-3 95 260 40 195 135 455 11.5
OCS-SL-5 120 325 50 240 165 535 17.5
OCS-SL-10 124 325 60 240 165 660 27.5
OCS-SL-15 225 345 70 240 165 855 49
OCS-SL-20 225 345 85 240 165 920 56





MODEL Max. capacity(kg) Min. weigh(kg) Division(kg) Total dispay counts(n)
OCS-SL-2 2000 20 1 2000
OCS-SL-3 3000 20 1 3000
OCS-SL-5 5000 40 2 2500
OCS-SL-10 10000 100 5 3000
OCS-SL-15 15000 200 5 3000
OCS-SL-20 20000 200 10 2000
